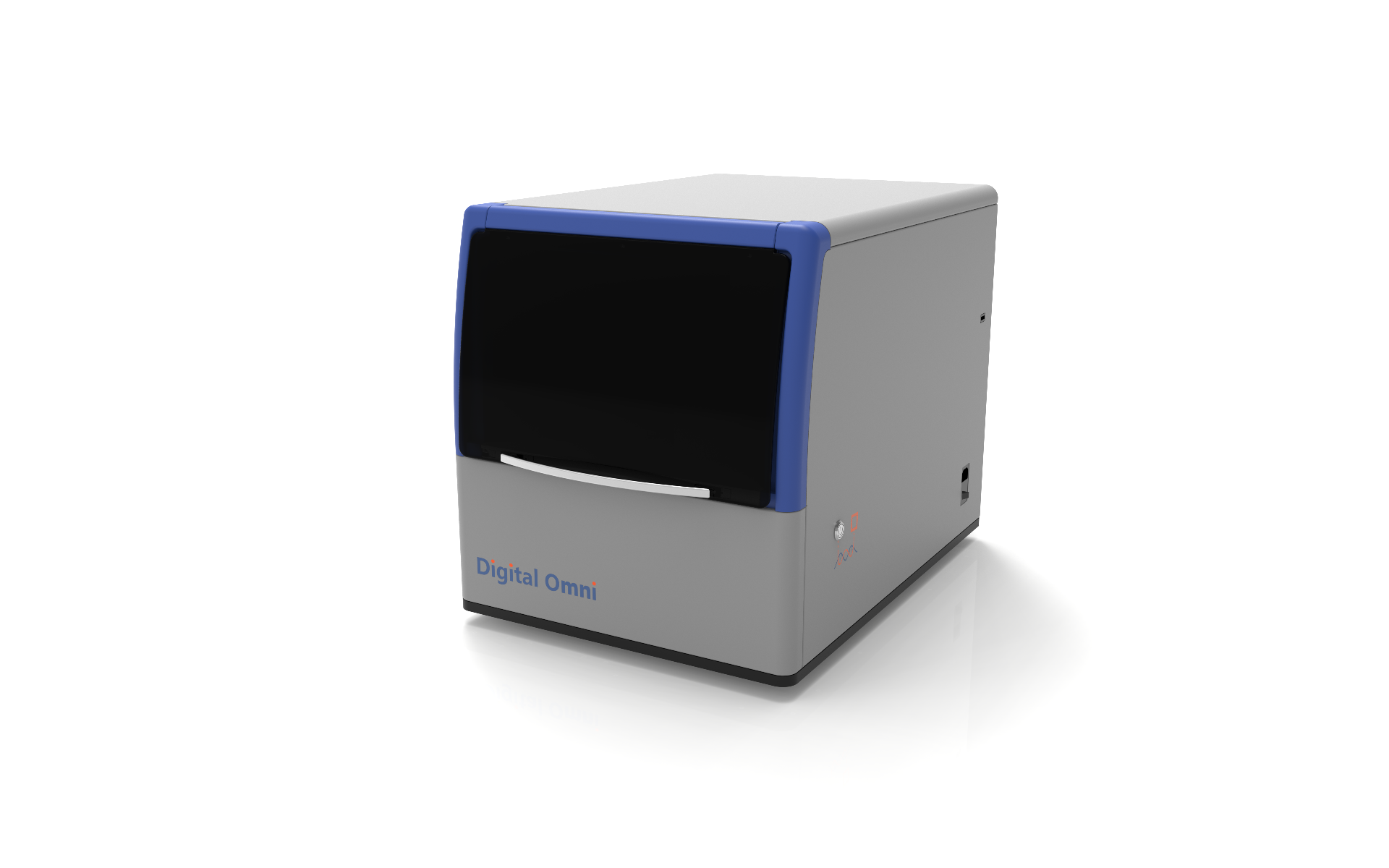

Digital Omni™: Ushering in a New Era of "Omni-Modality" Digital Molecular Detection
Digital Omni is the first fully integrated platform that combines digital PCR, digital isothermal amplification, and digital immunoassays into a single system. It offers ultra-multiplex nucleic acid quantification with 15–30 targets per run and achieves femtogram-level sensitivity in protein detection. With its exceptional openness, compatibility, and automation, Digital Omni provides a unified, highly efficient, and low-barrier solution for applications in research, diagnostics, food safety, and public health.
Based upon SCI Digital Pro
Full Modality: digital PCR, digital isothermal amplification, digital immunoassay (BIOSEER, immuno-PCR ELISA)
Throughput: Supports 24 samples per run
Fluorescent Channels: 4/5/6/(6+1) channels (FAM, HEX (VIC), ROX, Cy5, Quasar705, Atto425, with customizable channel)
Multiplexity: Exponential Ultra-Multiplex Digital PCR Technology
Intellegent: AI-assisted chip reading and automated noise removal based on neural network algorithms
Sample Loading Time: <4 minutes
Reading Speed: Single-channel scanning time <0.5 minutes per sample
Detection Speed: Total experimental process time ≤3 hours, including droplet generation, amplification, and data reading and analysis
Amplification Capability: Dual PCR thermal modules for simultaneous operation of different programs with temperature gradient
Compact Design: With a width of only 440mm, it occupies minimal bench space
All-in-1, fully automated: Samples in, results out, with no manual sample loading or transfer
Extensive reagent compatibility: Widely compatible with reagents for PCR, isothermal amplification, and immunoassay, simplifying assay development.
Ultimately low cost: Price comparable to qPCR; low cost per run.
Superb flexibility: 2-24 samples, 1 chip/sample, minimum 2 samples/run - farewell to sample pooling, minimizing consumable waste.
High performance: Sensitivity of 0.01%.
Extremely easy to use: Experiment preparation can be completed in as little as 1 minute, greatly enhancing efficiency
Data analysis:
The software automatically performs fluorescence signal statistical analysis for each channel, calculating the initial copy number or concentration (copies/μL) of the target molecules in each sample, copy number variation (CNV), and results can be directly printed or imported into Excel.
The analysis threshold line of the data analysis software can be manually adjusted, and pairwise comparisons between channels can be made. The results can be displayed through 1-D graphs, 2-D graphs, histograms, and original chip images.
Innovative glass-based microfluidic chip
Principal: glass-based sandwich design enabling the solidified oil isolation technology, which forms micro-droplets sealed in independent microchambers by solidifying the oil phase. A totally different approach than oil encapsulated water droplet partitioning method or flow cytometry detection principle.
Advantages: prevents droplet fusion or uneven droplet sizes, ensuring more stable droplets. Rapid generation of 20,000+ droplets with higher effective droplet ratio (>95%) and droplet uniformity (>99%). Higher thermal efficiency, more uniform reactions, increased transparency for higher signal quality.
Droplet generation illustration:
Product Specification
Technical Specification
