Fully Automated, All-in-One digital PCR device

All-in-1, fully automated: samples in, results out, with no manual sample loading or transfer

Extensive reagent compatibility: widely compatible with market PCR Mix, simplifying assay development.

Ultimately low cost: price comparable to qPCR; low cost per run.

Superb flexibility: 1-12 samples, 1 chip/sample, minimum 1 sample/run - farewell to sample pooling, minimizing consumable waste.

High performance: 2/3/4/5 fluorescence channels (FAM, HEX(VIC), ROX, Cy5, Quasar705) with sensitivity of 0.01%.

High scalability: upgradable with Exponential Ultra-Multiplex Digital PCR Technology, and world's innovative commercialized digital isothermal amplification function - ISO Digital

Extremely easy to use:

Experiment preparation can be completed in as little as 1 minute, greatly enhancing efficiency

Data analysis

The software automatically performs fluorescence signal statistical analysis for each channel, calculating the initial copy number or concentration (copies/μL) of the target molecules in each sample, copy number variation (CNV), and results can be directly printed or imported into Excel.

The analysis threshold line of the data analysis software can be manually adjusted, and pairwise comparisons between channels can be made. The results can be displayed through 1-D graphs, 2-D graphs, histograms, and original chip images.

Innovative glass-based microfluidic chip

Principal: glass-based sandwich design enabling the solidified oil isolation technology, which forms micro-droplets sealed in independent microchambers by solidifying the oil phase. A totally different approach than oil encapsulated water droplet partitioning method or flow cytometry detection principle.

Advantages: prevents droplet fusion or uneven droplet sizes, ensuring more stable droplets. Rapid generation of 20,000+ droplets with higher effective droplet ratio (>95%) and droplet uniformity (>99%). Higher thermal efficiency, more uniform reactions, increased transparency for higher signal quality.

Droplet generation illustration:

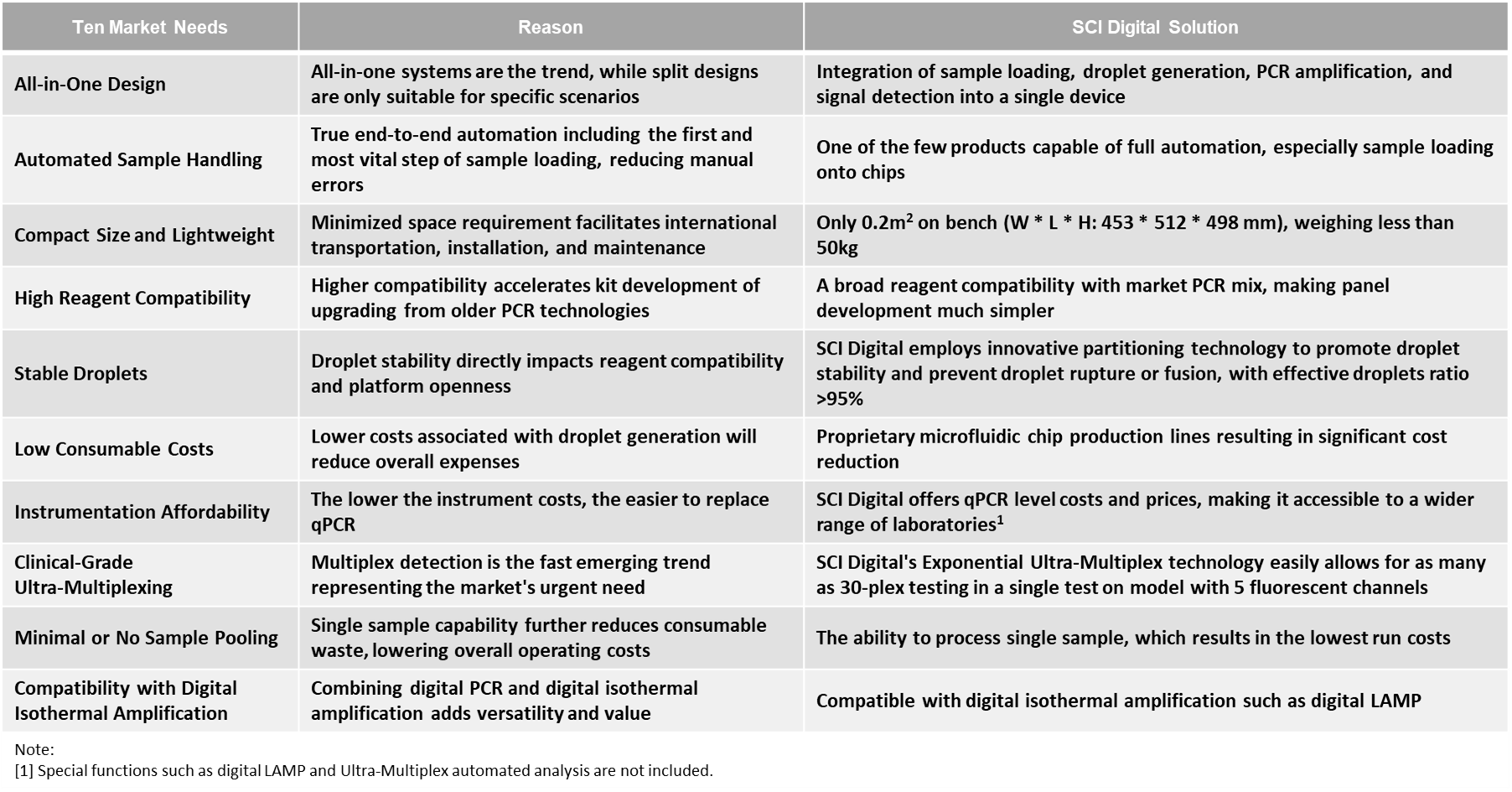

Ten Reasons to Choose SCI Digital for Your Researches and Tests
